Navarro Lightweight Horse Carriage — technical specifications

Dimensions and capacity

Unladen weight	65 kg, extras included
Seats	2 (driver + passenger)
Extended configuration	By coupling a second Navarro: a 4-wheel, 4-seat carriage (2+2), reversibly
Axles available	Standard axle for mountain terrain; optional wide-track axle for sand ruts like those at El Rocío

Structure and materials

Frame: two one-piece stainless steel side rails, joined by laminated aluminium plates.
Fasteners: stainless steel Allen bolts, all the same size, so it can be assembled and disassembled with a single tool. Self-locking nuts.
Wood: treated iroko.
Wheel protection: a tube protects each wheel from contact with logs or rocks, prevents it from jamming and keeps branches from getting between the wheel and the leaf spring.

See why each material was chosen

Seats and suspension

In-house-built wraparound bucket seats, adjustable in height and tilt, to reduce fatigue on long crossings.
Suspension independently adjustable for each passenger.
Corduroy upholstery as standard. As an extra, leather or faux leather, in the colour of your choice.
Optional storage pockets on the seats.

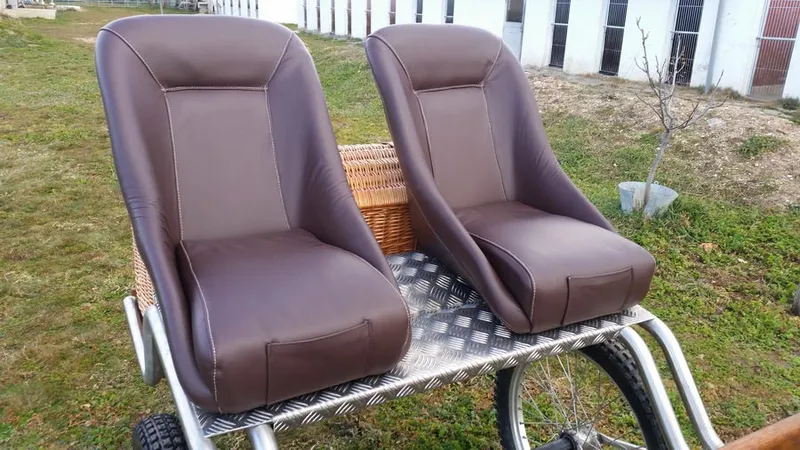

Bucket seats of the Navarro lightweight horse carriage upholstered in brown leather, rear view — Brown leather (extra)

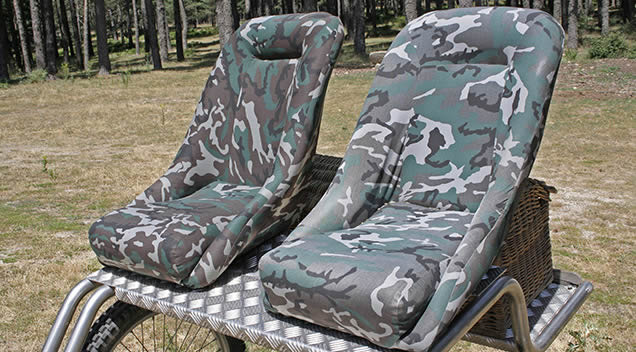

Bucket seats of the Navarro lightweight horse carriage with camouflage-print fabric upholstery — Camouflage fabric

Configuration options

Brakes	Hydraulic
Hood	Optional, foldable, with a stainless steel frame. Colour matched to the upholstery or independent
Trunk	Optional, custom-made wicker, with or without a built-in polystyrene cooler
Harness	Supplied by the manufacturer, choice of leather or nylon
Tack	Chosen according to the horse's breed and height

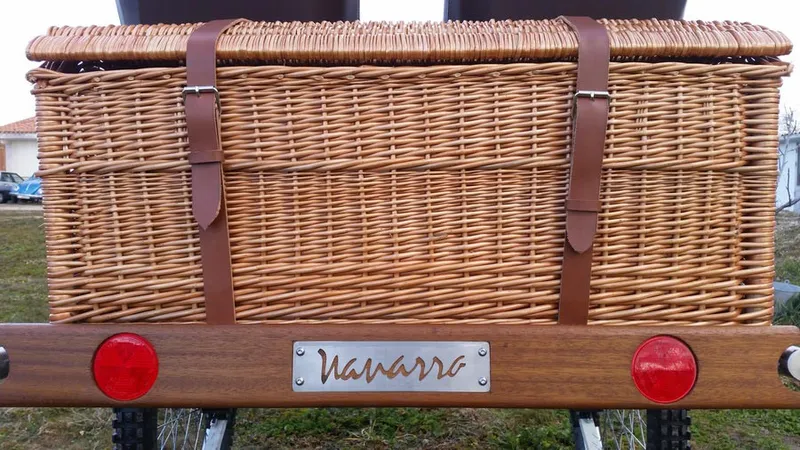

Wicker trunk with built-in polystyrene cooler — Custom-made wicker trunk, with built-in polystyrene cooler

Four seats in tandem: couple a second Navarro

Navarro four-seat horse carriage, two units coupled, side view — Four-seat horse carriage: two Navarros coupled (2+2)

Coupling a second Navarro gives you a four-wheel, four-seat (2+2) carriage, reversibly. Unlike a traditional carriage, where two passengers travel facing backwards, here all four always face the direction of travel. For shipping, the whole unit is fully disassembled and travels on a pallet; you can then partially disassemble it yourself afterwards, to transport it in a van or on a roof rack.

See the full comparison with a traditional carriage

Safety

Design with no protruding or breakable elements that could injure passengers or the horse.
Reflectors compliant with road traffic regulations.
Centre of gravity directly above the axle.

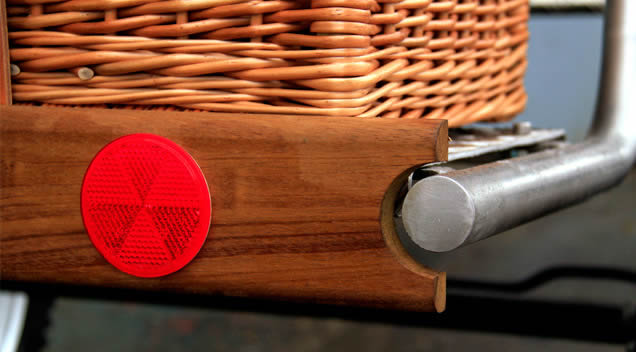

Regulation reflectors fitted to the Navarro's wicker trunk — Regulation reflectors fitted to the wicker trunk

See how this affects horse welfare

Indicative pricing

Each Navarro is custom-built, so the final price depends on the chosen configuration: upholstery, brakes, hood, trunk and axle. The base carriage starts from €4,200 (without seats or trunk). As a starting reference, request your personalised quote: you'll receive an exact price based on your configuration in under 24 hours.
